It’s only possible to import one prototype per maze. This is important to remember when testing different prototype flows in Maze. For example, when using a variant comparison block or several prototype test blocks.

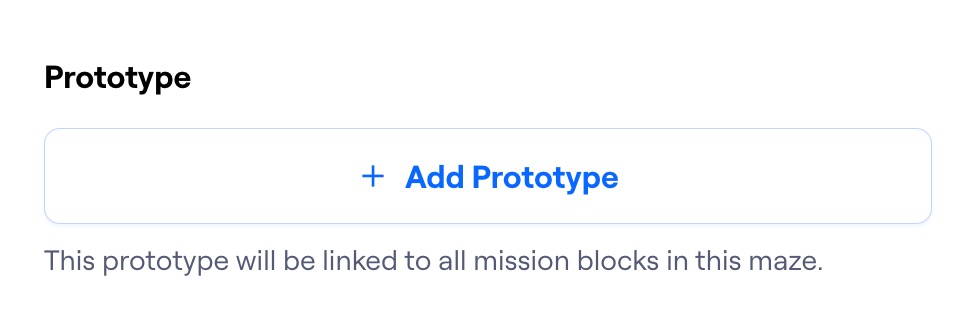

After importing the prototype, it’ll be linked to all prototype blocks. This means that the imported page must include all the flows you want to test.
This article provides tips on how to efficiently manage and test multiple flows within one prototype.
Step 1: Set up your Figma page
The first step is to make sure all your prototype flows are included within the same Figma page. This will allow you to access these flows when setting up the test with the imported prototype.
A few tips:
- Properly naming your Figma frames simplifies the process of managing and identifying different flows within a single prototype. Use clear and descriptive names for each frame. You may also use consistent prefixes/suffixes to categorize frames belonging to specific flows. Examples: "Signup-Start", "Checkout-Step-1”
- Your flows should be properly defined in Figma, and frames are accessible via interactions. Learn more in the Figma documentation
- You’ll still want to make sure that your page is optimized for testing with Maze. Learn more about creating a dedicated page to test Figma prototypes in Maze
Step 2: Import the prototype into Maze
There are two options for importing your prototype into the maze:
-
Regular importing: Importing by copying and pasting the prototype link imports all flows and screens by default. This method is ideal if your page isn’t too large, and you wish to import the entire page. Learn more about importing Figma prototypes
-
Figma plugin: The Figma plugin allows you to select which specific flows you want to import. This makes it easier to focus on particular sections of your prototype during testing. Learn more about the Figma plugin
Step 3: Set up tasks
After importing your prototype, you need to select the starting screen (i.e. the screen participants will see at the start of each task) and define the expected path(s).
The start screen is the first screen that your testers will see at the beginning of the mission.

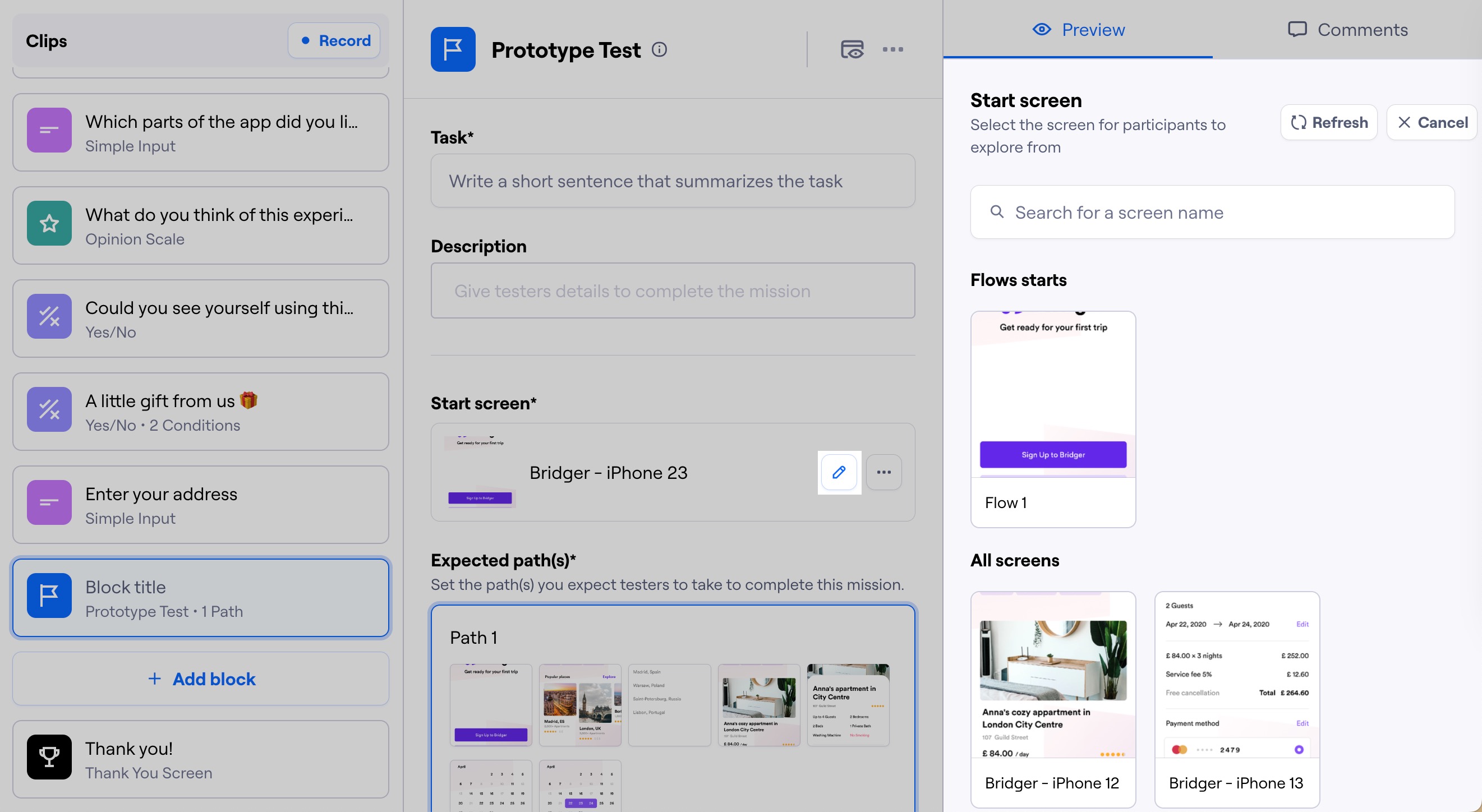

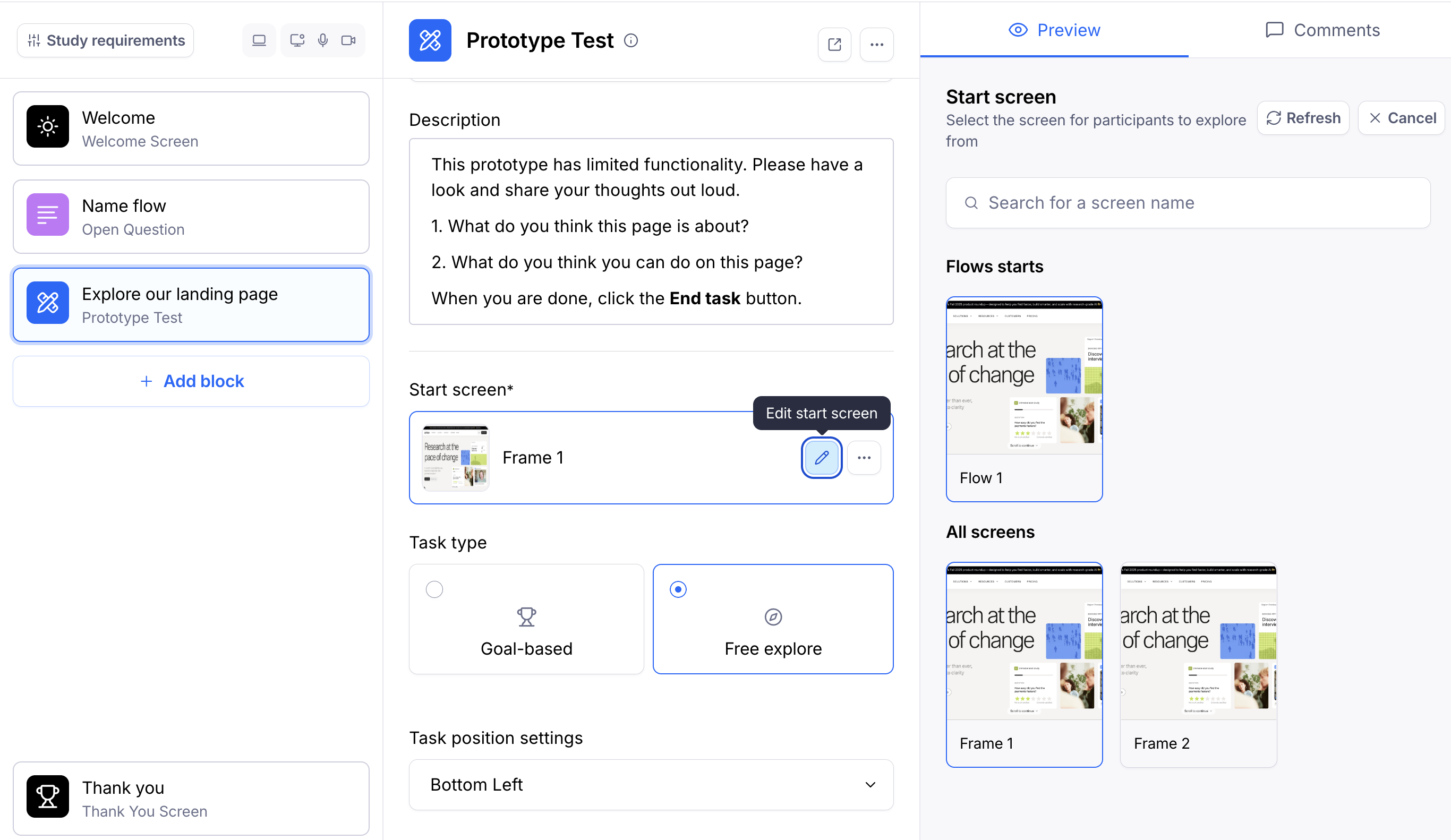

To change the start screen, click the Edit start screen button. This will display all imported screens. Click a screen to select it as the start screen.

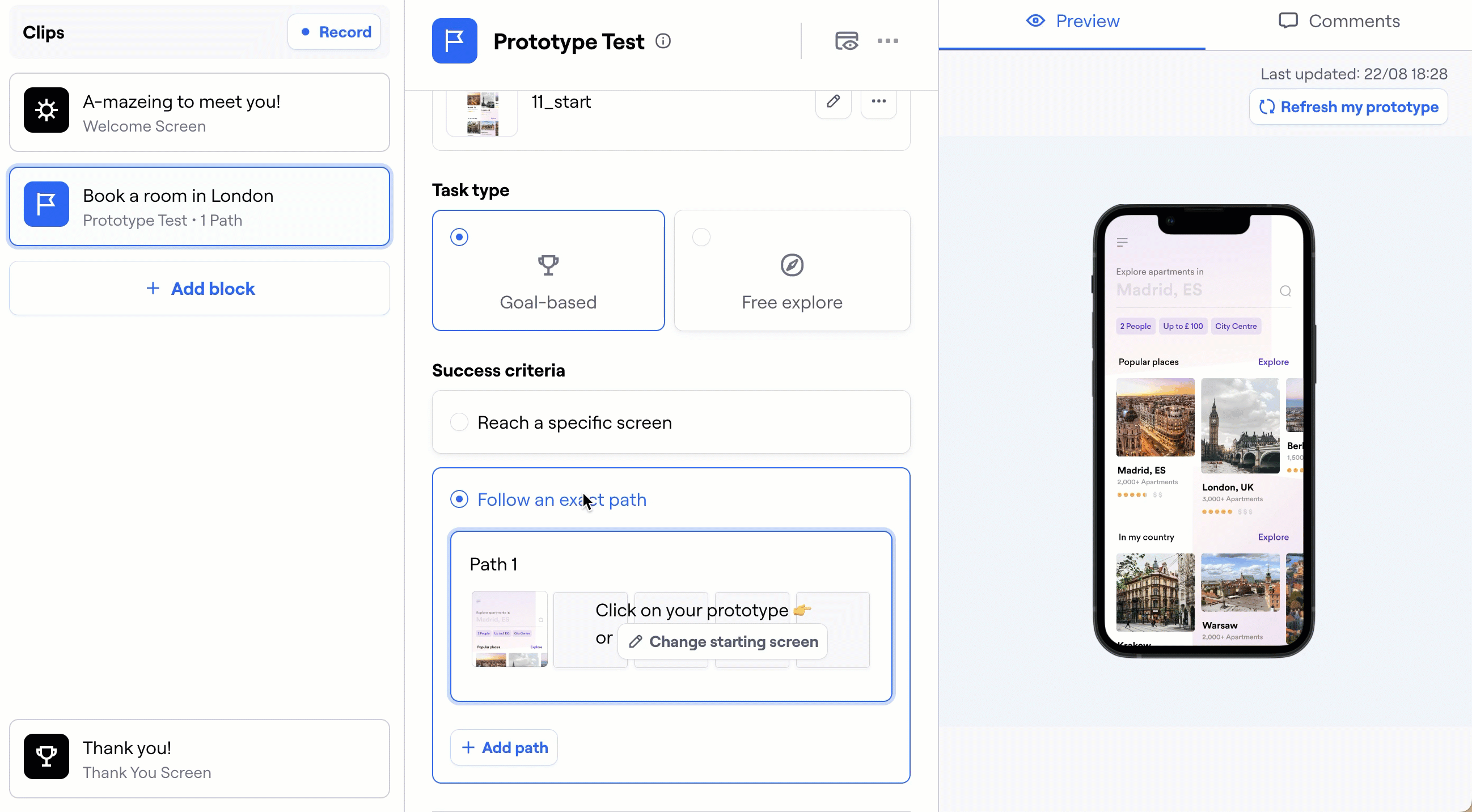

Click through the prototype hotspots to add screens to the path.
